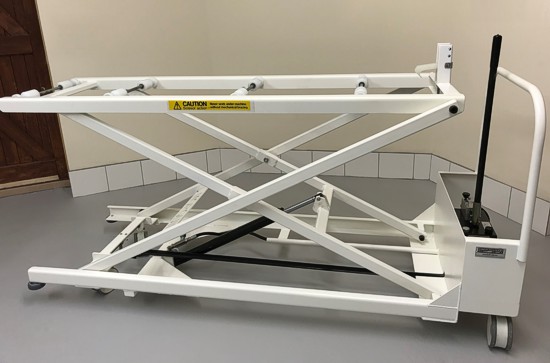

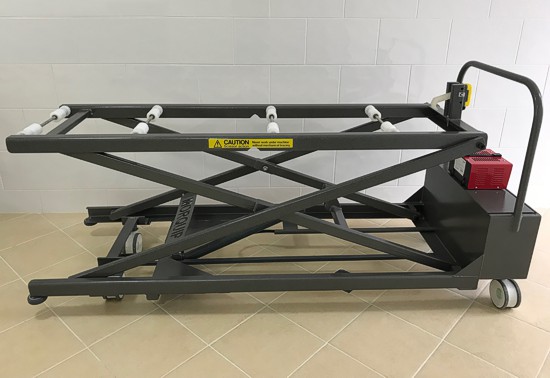

Premium End Loading Hydraulic Scissor-Lift Trolley

The Morquip Premium Hydraulic Scissor-Lift Trolley is available as a manual version or with battery-powered controls and all swivel non-marking rubber-tyred wheels (125mm dia) with central brake system. The trolley is designed for the effortless transfer of the tray/body.

Premium End Loading Hydraulic Scissor-Lift Trolley

Models: 3, 4, 5 or 6 Tier

Stacker Dimensions:

Minimum closed height: 240mm
Extended height upto: 2100mm
Measurements: W:715mm L: 2300mm
Standard max Load: 180kg
(available up to 320kg)
Standard extended height: 1750mm

Features:

Construction: high-grade steel section.
Elevating platform fitted with nylon rollers.
Operation of elevating platform by means of a single-acting hydraulic ram and pump unit.
Choice of controls - hand operated lever or battery powered pump.
Swl 380kg (60 stone) trolley available - contact for details.
Stainless steel trolley available - contact for details.
