Premium Side Loading Hydraulic Scissor-Lift Trolley

The Morquip Premium Hydraulic Scissor-Lift Trolley is available as a manual version or with battery-powered controls and all swivel non-marking rubber-tyred wheels (125mm dia) with Individual brakes. The trolley is designed for the effortless transfer of the tray/body.

Premium Side Loading End Handle Hydraulic Scissor-Lift Trolley

Premium Side Loading End Handle Hydraulic Scissor-Lift Trolley

Models: 3 or 4 Tier

Stacker Dimensions:

  • Minimum closed height: 320mm
  • Extended height: 1830mm
  • Measurements: W: 715mm L: 2300mm
  • Standard max Load: 180kg
    (available up to 255kg)
  • Standard max extended height: 1830mm

Features:

  • Construction: high-grade steel section.
  • Elevating platform fitted with nylon rollers.
  • Operation of elevating platform by means of a single-acting hydraulic ram and pump unit.
  • Choice of controls - hand operated lever or battery powered pump.
  • Side-Loading option for use in restricted space.
  • Stainless steel trolley available - contact for details.

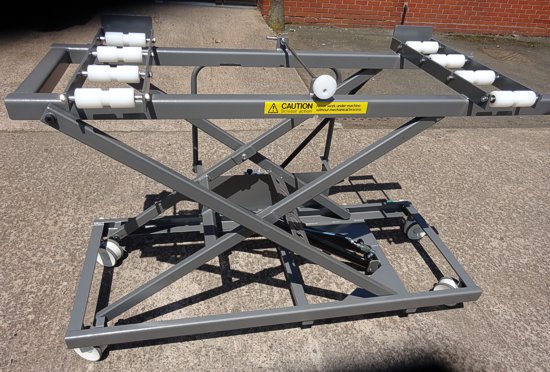

Premium Side Loading Side Handle Hydraulic Scissor-Lift Trolley

Premium Side Loading Side Handle Hydraulic Scissor-Lift Trolley

Stacker Dimensions:

  • Minimum closed height: 320mm
  • Extended height: 1830mm
  • Measurements: W: 970mm L: 2000mm
  • Standard max Load: 180kg
    (available up to 255kg)
